Point Motor Selection Chart

Points

Make

Type

Fitted Contacts

Additional Contacts

Speed

Part No

Manufacturer /Supplier

Guide Price (2014)/Bulk

Mount

Connection

 Size (w,l,d)

Static mAmp

Move mAmp

Volt Min

Volt Max

Volt Type

 Throw

 Links

Notes


Make (repeat)

Conrad

Motor/end

None

None

Fast

219998 - 89


£4

Under

Prewired

6.5

N/A

13mA


16

AC

6.5

Manu Site



Conrad

Conrad

Motor/end

One c/o

None

Fast

219999 - 89


£6/£5

Under

Prewired

6.5

N/A

13mA


16

AC

6.5

Manu Site




Fulgerex


Two  c/o

None

Slow




Under

Solder




8

10

DC





Fulgerex

Hornby

Solenoid

None


Fast

R8014

Hornby

£8.00

Either

Prewired


0mA

30mA



AC or DC





Hornby

Hornby

Solenoid

None

None

Fast

R8243

Hornby

£7.00

Surface

Prewired











Hornby

Peco

Servo

None

None

Variable



£16

Under







AC or DC





Peco

Peco

Solenoid

none

None

Fast

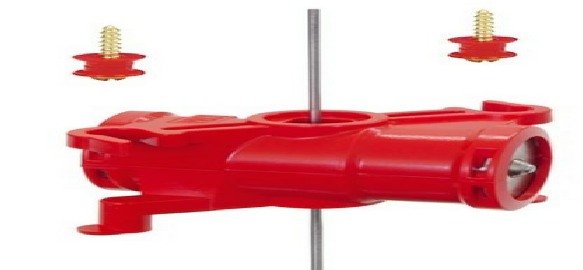

PL-11

Peco

£8.50

Surface

Prewired






AC or DC





Peco

Peco

Solenoid

none

1 (PL-13) or 2 (PL-15)

Fast

PL-10

Peco

£4.50

Under

Solder






AC or DC





Peco

Seep

Solenoid

One c/o

None

Fast

PM-01

Gaugemaster

£4

Under

Solder




12


AC or DC


Pdf Manual



Seep

Seep

Solenoid

None

None

Fast

PM-02

Gaugemaster

£3

Under

Solder




12


AC or DC


Pdf manual



Seep

Seep

Solenoid

One c/o

None

Fast

PM-04

Gaugemaster

£5

Under

Solder




12


AC or DC


Pdf Manual

Sprung


Seep

Tillig





86112


£22.50













Tillig

Tortoise

Motor/stall

Two  c/o

None

Slow


Circuitron, Inc.



Under


60x55x85

16mA

16mA

<12

12

DC


Pdf Manual



Tortoise

Traintronics





TT300













DCC


Traintronics

Hattons

Solenoid

None

None

Fast

Solenoid

HAT-PM-01


£7

Under

Prewired


0mA


12





Throw arm


Hattons

Signalist

Servo

None

2x CO V4 microswitches

Variable

SB1

Harman DCC

£12

Either

Servo Socket

52l x 22w x 38h

OmA


4.5

6

DC +impulse

5

Web page

drop in physical replacement for Peco PL10 or Hornby solenoid on Peco PL9 or PL12 base. Full movement is for 90-180 degree rotation, physical cam adjustment can be used to adjust throw 0mm - 5mm when servo set for 90 degree rotation


Peedie Models

CR Signals

Coastal DCC

Absolute Aspects

Walthers

Servo

Two c/o 5A

None

Variable

942-101

Walthers

$25

Under

Servo

51 x 51 x 70




12

DC or DCC

2-13

Pdf manual

DCC decoder built in


Walthers

Cobalt Classic

Omega

Motor/stall


Two c/o +  sig o/p

None

Slow

DCP-CB1OMG

DCC concepts

£17

Under

Push in Terminal

28mm x 38mm x 52mm deep

20mA

24mA

6

18

DC

Z, N, OO/HO, O

Pdf manual

Also available in packs of 6 and 12

Pict

ure

Cobalt Classic

Omega

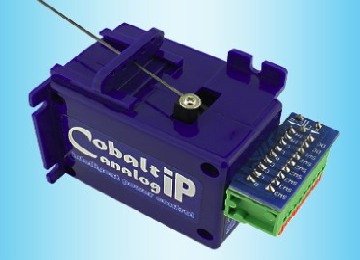

Cobalt IP

Analogue

Motor/stall


Two c/o +  sig o/p

None

Slow

DCP-CB1iP

DCC concepts

£20

Under

Push in Terminal

28mm x 38mm x 52mm deep

5mA

40mA

7

23

DC or DCC


Z, N, OO/HO, O

Pdf manual

Also available in packs of 6 and 12


Cobalt IP

Analogue

Cobalt IP

Digital

Motor/stall


Two c/o +  sig o/p

None

Slow

DCP-CB1DiP

DCC concepts

£23

Under

Push in Terminal

28mm x 38mm x 52mm deep

5mA

40mA

7

23

DC or DCC


Z, N, OO/HO, O

Pdf manual

Also available in packs of 6 and 12


Cobalt IP

Digital

DCC concepts

Stepper

One c/o + one frog c/o + 5v sig o/p

None

???

DCP-CBSS-XO

DCC concepts

£50 for two

Surface

Screw Terminal

10 x 14 x 27



12

23

DC or DCC

Z, N, OO/HO, O

Pdf manual



DCC concepts ss

Seep

Solenoid

None

None

Fast

PM20

Gaugemaster

£7

Surface

Screw Terminal


0

1A

16

24

AC or DC





Seep

Seep

Solenoid

None

None

Fast

PM20

Gaugemaster

£10

Surface

Prewired connector


0

1A

16

24

AC or DC





Seep

Gaugemaster

Solenoid

None

None

Fast

PM-10

Gaugemaster

£7

Under

Solder




12


AC or DC



Also available in packs of 5


Gaugemaster

Ongoing updates! Version 9

Notes

c/o = change over
